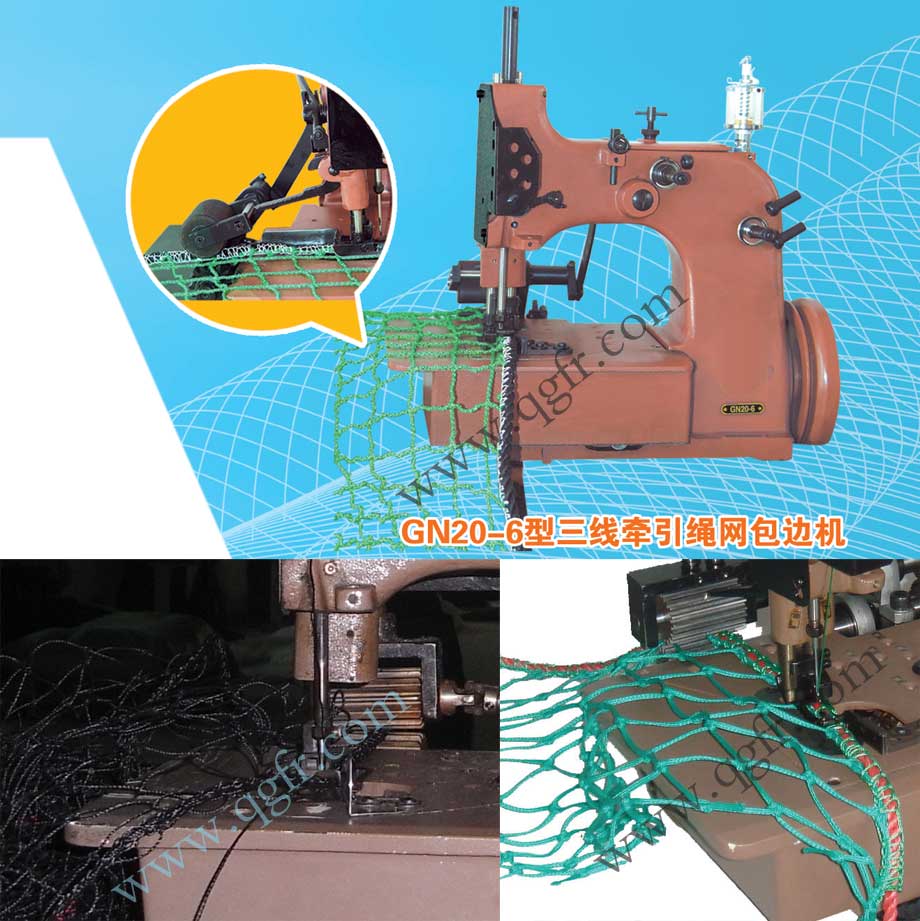

GN20-6 Net-ropes Sewing Machine
product description

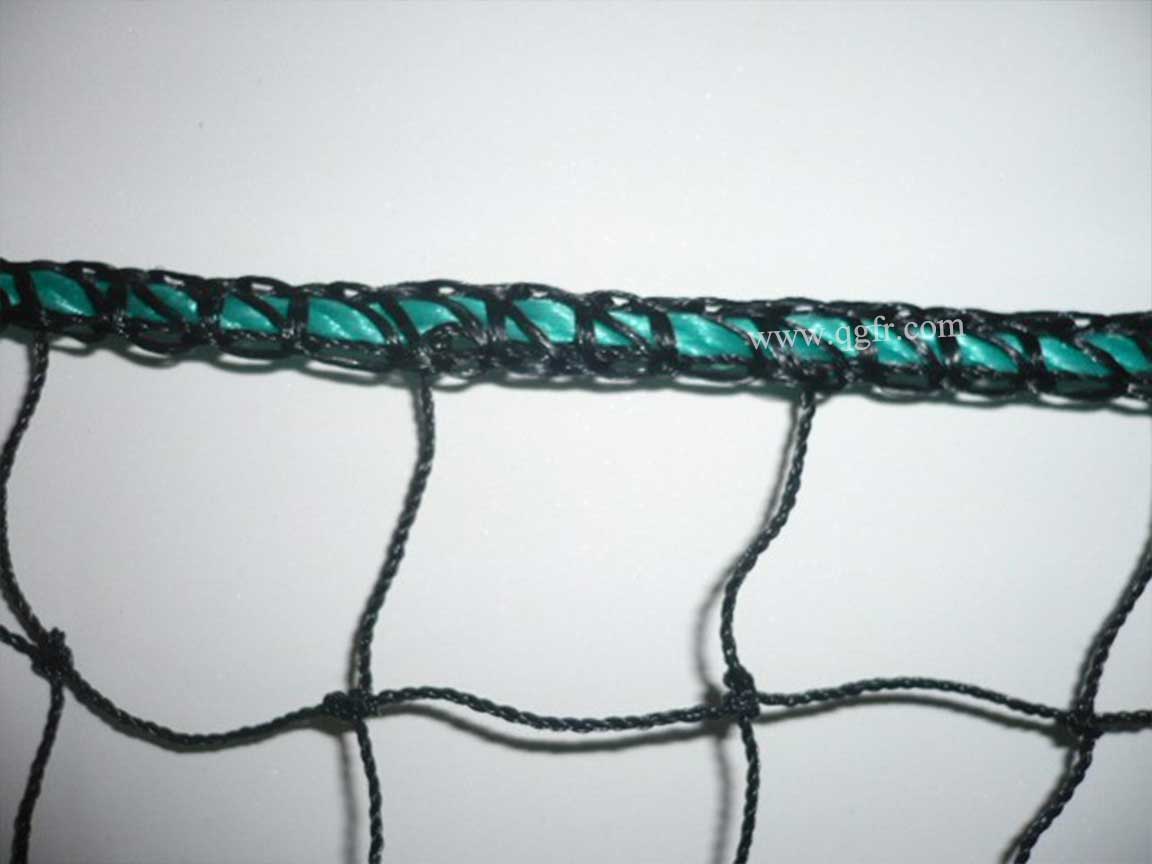

GN20-6 Net-ropes Sewing Machine: Single Needle, Plain Feed, Flat Bed, Double Threads Overlock Stitch Sewing Machine for attaching ropes from 4-12 mm diameter to net borders and tensioning ropes on nets, especially on sports and cover nets and nets for safety, sport and protection.
For attaching ropes from 4-12 mm diameter to net borders and tensioning ropes on nets (for rope over 12mm in diameter, please contact us);
For joining nets of meshs larger than 45 mm.;
Includes necessary puller to transport the sewn material;
Needle: 1;
Threads: 3;
Stitch range: 7-16mm;
Max. speed: 1400rpm;
For attaching ropes from 4-12 mm diameter to net borders and tensioning ropes on nets (for rope over 12mm in diameter, please contact us);
For joining nets of meshs larger than 45 mm.;
Includes necessary puller to transport the sewn material;
Needle: 1;
Threads: 3;
Stitch range: 7-16mm;
Max. speed: 1400rpm;
Technical Parameters
| Speed (max.) | 1400r/min |
| Sewing thickness | 10mm |
| Needle type | GK8×400#(33#) |
| Overedge width | 8-16mm |
| Stitch range | 4-10mm |
| Power | 370W |
| Net weight | 35kg |
| Dimension | 445×245×375mm |
